Wat is een ESS?
Een Energy Storage System (ESS) is een specifiek type energiesysteem dat een netaansluiting integreert met een Victron-omvormer/-acculader, GX-apparaat en accusysteem. Het slaat gedurende de dag PV-energie op in de accu voor later gebruik als de zon niet meer schijnt.
Het past de stroomvoorziening aan, aan de tijd van de dag, maakt opslag van PV-energie mogelijk, biedt ondersteuning aan netstroom en levert stroom terug naar het elektriciteitsnet.
Als een ESS-systeem meer energie produceert dan het kan gebruiken of opslaan, kan het de overtollige stroom aan het elektriciteitsnet terugleveren en als het onvoldoende energie of vermogen levert, koopt het het automatisch van het elektriciteitsnet.

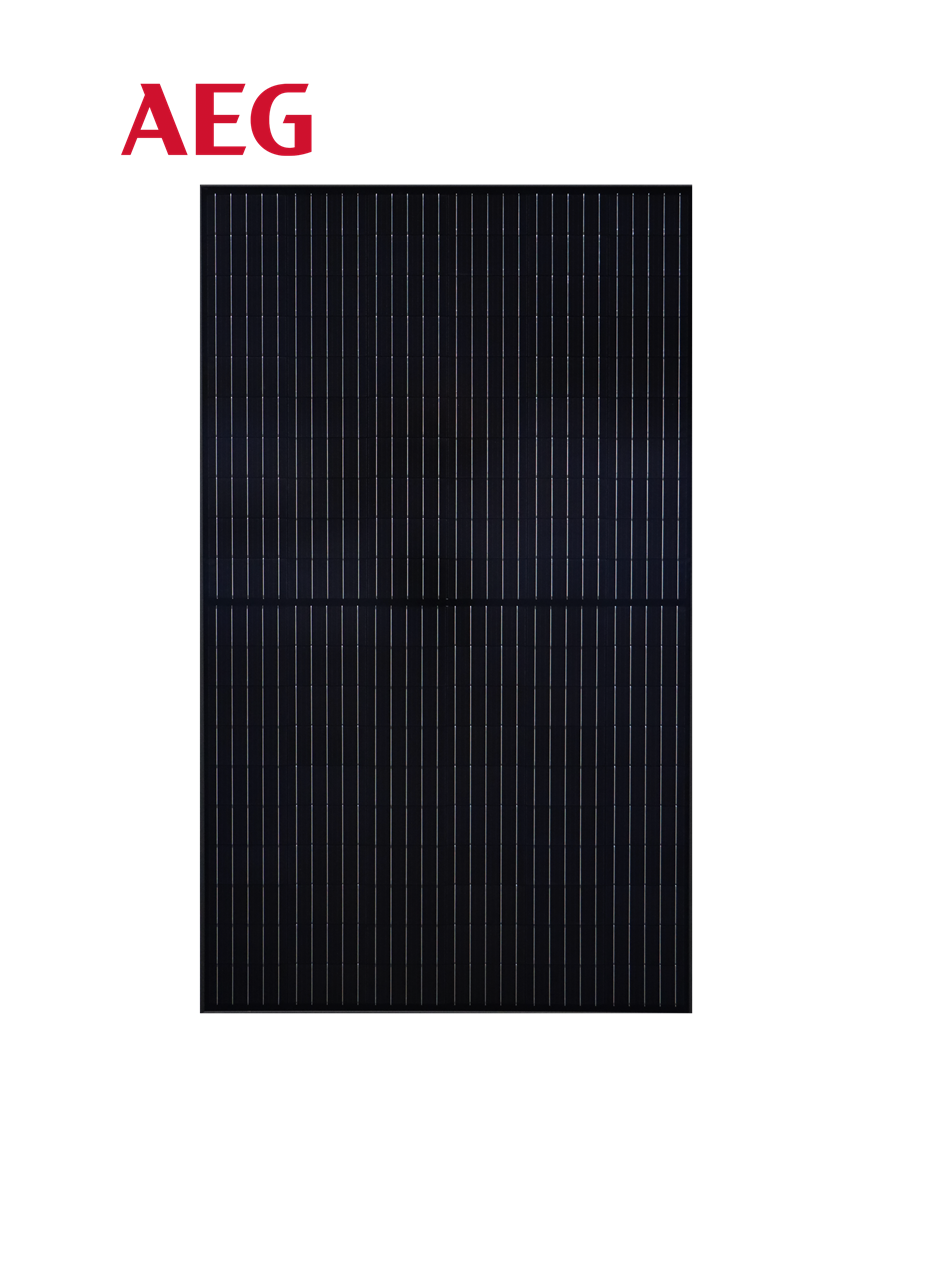

AEG AS-M1202Z-BH(M6)-365HV GLASS-GLASS 365W Mono Black Frame
AEG solar panels combine the most advanced technology with high reliability in production and offer a product that is intended for high performance.
The premium selection of components gives the AEG 365 GLASS-GLASS Mono Black Frame a superior look. Thanks to bifacial cell technology
, AEG solar panels benefit from additional energy conversion surface on the back. By capturing the reflected light from different installation surfaces, they can generate 10% to 30% more efficiency.
The AEG 365 GLASS-GLASS has the following unique features;
* Glass-glass panel
* Bifacial cell technology for more yield
* 30 year product warranty
* 30 year power warranty
* High efficiency
| General data | : |
| Brand | AEG |
| Quantity per pallet | 31 |
| Product warranty | 30 years |
| Size | 1755x1038x35 |
| Technical data | : |
| Tolerance | -0/ +5W |
| Imp (A) | 10.80 |
| vmp (V) | 33.82 |
| Isc (A) | 11.22 |
| Voc (V) | 41.57 |
| Various specifications | : |
| Number of cells | 120 |
| Junction box standard | Split, IP67, 3 bypass diodes |
| Connector type | MC4 |
| Number of diodes | 3 |
| Temperature coefficients | : |
| Temperature coefficient Isc | 0.038%/°C |
| Temperature coefficient Voc | -0.270%/°C |
| Temperature coefficient Pmax | -0.365%/°C |
| Packaging | : |
| Weight | 24kg |
| Pieces per pallet | 31 |
| Pallets per container | 26 |
| Panels per container | 806 |
AEG-AS-M1202B-H(M6)-370W Mono Full Black/ Half cell
AEG solar panels, combining the most advanced technology with high reliability in production, offer a product intended for high performance.
The premium selection of components gives the AEG-AS-M1202B-H(M6)-370W Mono Full Black/Half Cell a superior look.
The AEG-AS-M1202B-H(M6)-370W Mono Full Black/Half cell has the following unique features;
* Very nice full black panel
* 20 year product warranty
* 25 year performance warranty
* High efficiency
* Integrated production lines contribute to an excellent price/quality ratio
| Brand | AEG |
| Quantity per pallet | 31 |
| Product warranty | 20 years |
| Technical data | : |
| Tolerance | -0/ +5W |
| Imp (A) | 10.83 |
| vmp (V) | 34.17 |
| Isc (A) | 11.29 |
| Voc (V) | 41.96 |
| Efficiency | 20.31% |
| Various specifications | : |
| Cabling | 4mm²/1400mm¹ |
| Junction box standard | IP68, 3 bypass diodes |
| Connector type | MC4 |
| Maximum snow load | 5400 Pa |
| Maximum wind load | 2400 Pa |
| Maximum System Voltage | 1000V |
| Maximum fuse | 20A |
| Number of diodes | 3 |
| Temperature coefficients | : |
| Temperature coefficient Isc | 0.038%/ °C |
| Temperature coefficient Voc | -0.270%/ °C |
| Temperature coefficient Pmax | -0.365 %/°C |
| Packaging | : |
| Panel size | 1755x1038x35mm |
| Weight | 21kg |
| Pieces per pallet | 31 |
| Pallets per container | 26 |
| Panels per container | 806 |
AS-M1082B-H(M10) 400W Mono Full Black
AEG solar panels combine the most advanced technology with high reliability in production and offer a product that is intended for high performance.
The premium selection of components gives the AEG 400 Wp Mono Full Black (M10 cells) a superior look. The solar panel even includes a new cell technology with M10 cells that increase energy efficiency.
The AEG 400 Wp Mono Full Black has the following unique features:
* 20 year product warranty
* High efficiency
* Half-cut M10 cells
* Extra long cables provide more installation flexibility and comfort
| General data | : |
| Brand | AEG |
| Quantity per pallet | 36 |
| Product Warranty | 20 years |
| Size | 1722x1134x30mm |
| Technical data | : |
| Tolerance | -0/ +5W |
| Imp (A) | 13.19 |
| vmp (V) | 30.35 |
| Isc (A) | 13.59 |
| Voc (V) | 37.21 |
| Efficiency | 20.48% |
| Various specifications | : |
| Cabling | 1200mm |
| Number of cells | 108 m10 half cut |
| Junction box standard | IP67/68 |
| Connector type | MC4 |
| Maximum snow load | 5400 Pa |
| Maximum wind load | 2400 Pa |
| Maximum fuse | 25 |
| Temperature coefficients | : |
| Temperature coefficient Voc | -0.246%/°C |
| Temperature coefficient Isc | 0.0448%/°C |
| Temperature coefficient Pmax | -0.330%/°C |
| Packaging | : |
| Weight | 22.3 kg |
| Pieces per pallet | 36 |
| Panels per container | 936 |
